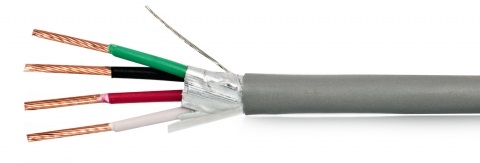

Shielded 4 Core Cable 14/0.2

Description

Shielded 4 Core Cable 14/0.2 -This cable is compatible with NEMA23 stepper motors. The shielding reduces signal noise and helps eliminate lost steps, providing smoother and more precise motion for your stepper motor. Note: Sold by the meter. If you order 5 meters, you will receive one 5-meter length.

Details:

• Number of Cores: 4
• Conductor No/Dia (mm): 14/0.2
• Nominal Area (mm2) per core: 0.4
• Amp Rating: 2.8
• Insulation Thickness (mm): 0.3
• Sheath Thickness: 0.76
• Electrical Resistance @20°C ohm/km: 44.8
• Nominal O.D (mm): 5.4
• Sheath Colour: Grey

Screen:

• Aluminum / Polyester Laminate Tape Screen with a 7/0.2mm Tinned Copper Drain Wire

Cross Section:

NOTE: Colours indicative only

NOTE:

• Maximum working voltage 300 Volts
• Not Suitable For Connection To Mains Power GPO

Useful resources:

• http://www.rapidtables.com/calc/wire/voltage-drop-calculator.htm
• http://www.rapidtables.com/calc/wire/wire-gauge-chart.htm
