    PiBot Opto-Isolated Relay Module Rev2.3

    Be the first to review this product
    ₹ 770.54 incl tax

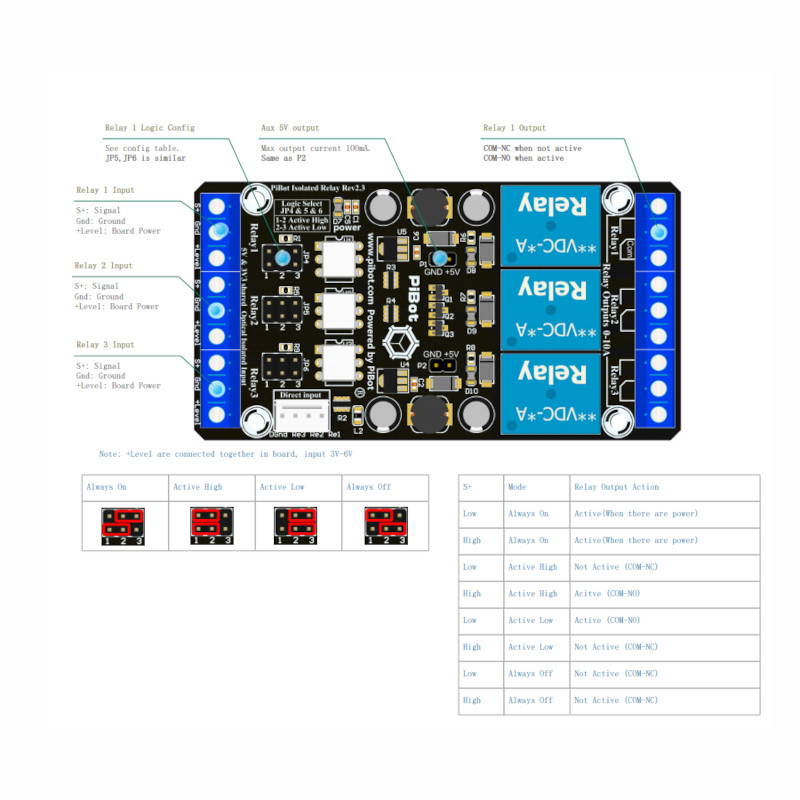

    The PiBot Opto-Isolated Relay Module is a great way to switch outputs like coolant, mist, or a VFD to turn on a spindle with the Pibot controller. This board is super easy to use and features 3 opto-isolated relays to minimize electrical interference.
    SKU: PB-RELAY-IRB230
    Availability: Out of stock
    Free shipping

    Description

    The PiBot Opto-Isolated Relay Module is a great way to switch outputs like coolant, mist, or a VFD to turn on a spindle with the Pibot controller. This board is super easy to use and features 3 opto-isolated relays to minimize electrical interference.

    Specifications:

    • 3.3V and 5V input signal compatible.
    • Operation: 10A 250/125VAC or 10A 30/28VDC
    • Optocoupler Type: 470KHz isolate optocoupler(4N35)
    • Dimensions: 85mm × 50mm × 20mm
    • Hole Diameter: 3mm

    Please note:

    • This listing is for the relay module only.

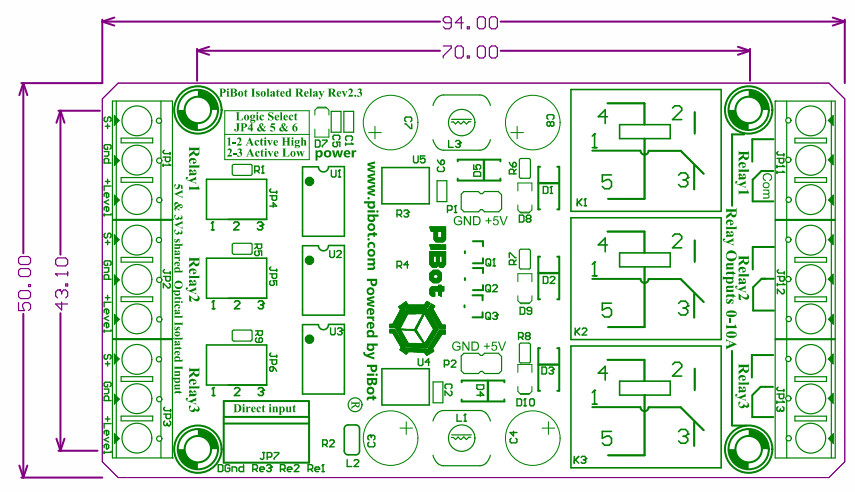

    Dimension Drawing:



    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *

    Description

    The PiBot Opto-Isolated Relay Module is a great way to switch outputs like coolant, mist, or a VFD to turn on a spindle with the Pibot controller. This board is super easy to use and features 3 opto-isolated relays to minimize electrical interference.

    Specifications:

    • 3.3V and 5V input signal compatible.
    • Operation: 10A 250/125VAC or 10A 30/28VDC
    • Optocoupler Type: 470KHz isolate optocoupler(4N35)
    • Dimensions: 85mm × 50mm × 20mm
    • Hole Diameter: 3mm

    Please note:

    • This listing is for the relay module only.

    Dimension Drawing:
