NEMA 23 Steeper Motor 1.26 Nm-Standard Torque

Description

The High Torque NEMA23 stepper motor is a great choice for any project that requires more power and strength. With a holding torque of 1.26N.m, it's perfect for larger machines that need a little extra torque.

All Nema23 Stepper motors now come with an EDG 4P Connector for an easy plug-and-play solution.

Pair them with the 24V DC Meanwell Power Supply for better accuracy, speed, and torque.

With an all-black body, these motors also look fantastic!

Don’t forget to grab some 4 Core Shielded Cable!

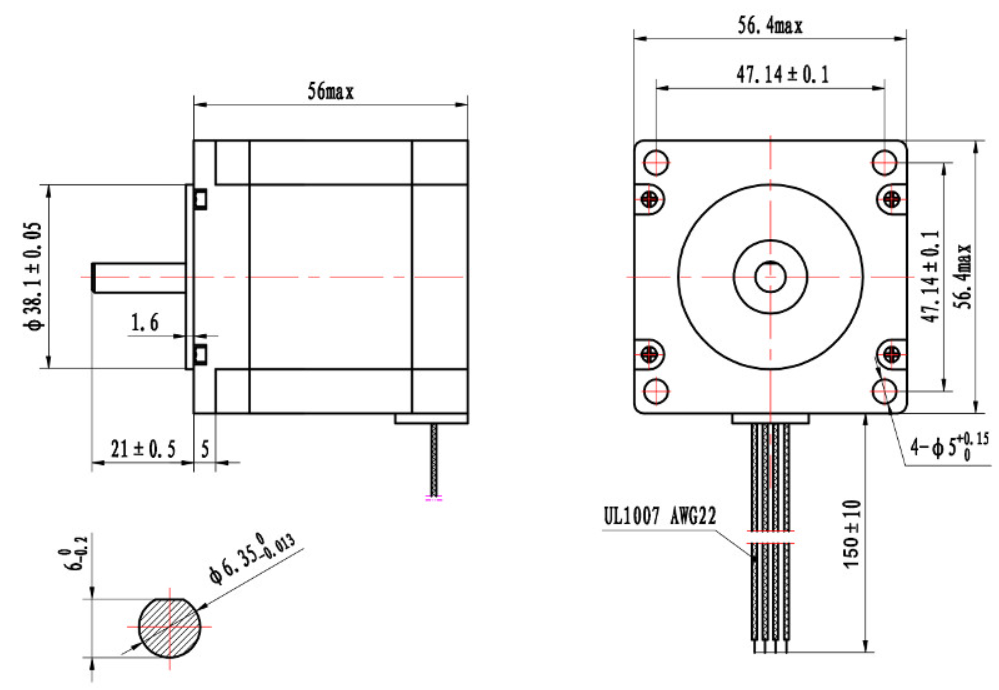

Specification:

• Step Angle：1.8°
• Rated current：2.8A DC
• Rated Voltage: 3.36V
• Winding dc resistance（25℃）：1.2Ω±10%
• Winding inductance：2.3mH±20%
• Holding torque：≥1.26N.m
• Shaft diamater: 6.35mm or 1/4″
