    Mini DC motor PWM Speed Controller / LED dimmer

    Be the first to review this product
    ₹ 169.92 incl tax
    With this Mini Style DC Motor Speed Regulator, you can control the speed of a DC motor by adjusting the Pulse-Width-Modulation (PWM). That means you can get precise speed control for your projects, whether it's for LED lights or DC motors. You can adjust the speed anywhere from 1-100%, so you have a wide range of options to work with. So why not give it a try for your next project?
    SKU: PIDRB230B01
    Availability: In stock
    Free shipping

    Description

    With this Mini Style DC Motor Speed Regulator, you can control the speed of a DC motor by adjusting the Pulse-Width-Modulation (PWM). That means you can get precise speed control for your projects, whether it's for LED lights or DC motors. You can adjust the speed anywhere from 1-100%, so you have a wide range of options to work with. So why not give it a try for your next project?

    Specifications:

    • For motor control (single direction only – motors up to 5A)
    • For LED brightness control
    • Working voltage: DC3V-35V
    • Maximum Power Control: 90W
    • Maximum Output Current: 5A (With active cooling)
    • Static current: 0.015A (standby)
    • PWM duty ratio: 1-100%
    • Frequency of PWM: 20khz

    More Information:

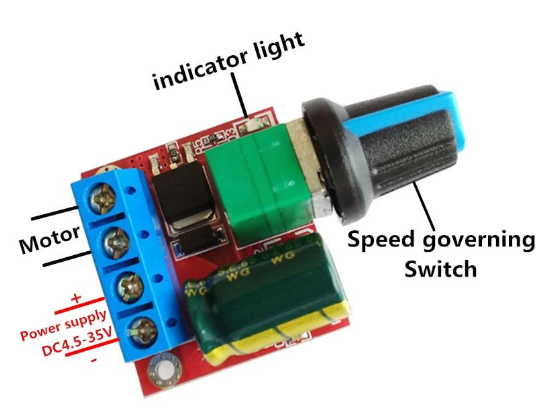

    Pinout diagram

    Please Note:

    • Products may vary slightly from images and drawings
    • Before wiring, the controller, make sure the power is off.
    • Connect wires as per the wiring diagram below.
    • Turn on the power, and adjust the potentiometer.
    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *

    Description

    With this Mini Style DC Motor Speed Regulator, you can control the speed of a DC motor by adjusting the Pulse-Width-Modulation (PWM). That means you can get precise speed control for your projects, whether it's for LED lights or DC motors. You can adjust the speed anywhere from 1-100%, so you have a wide range of options to work with. So why not give it a try for your next project?

    Specifications:

    • For motor control (single direction only – motors up to 5A)
    • For LED brightness control
    • Working voltage: DC3V-35V
    • Maximum Power Control: 90W
    • Maximum Output Current: 5A (With active cooling)
    • Static current: 0.015A (standby)
    • PWM duty ratio: 1-100%
    • Frequency of PWM: 20khz

    More Information:

    Pinout diagram

    Please Note:

    • Products may vary slightly from images and drawings
    • Before wiring, the controller, make sure the power is off.
    • Connect wires as per the wiring diagram below.
    • Turn on the power, and adjust the potentiometer.
