Linear Slide Bearing Block MGN 15C

Description

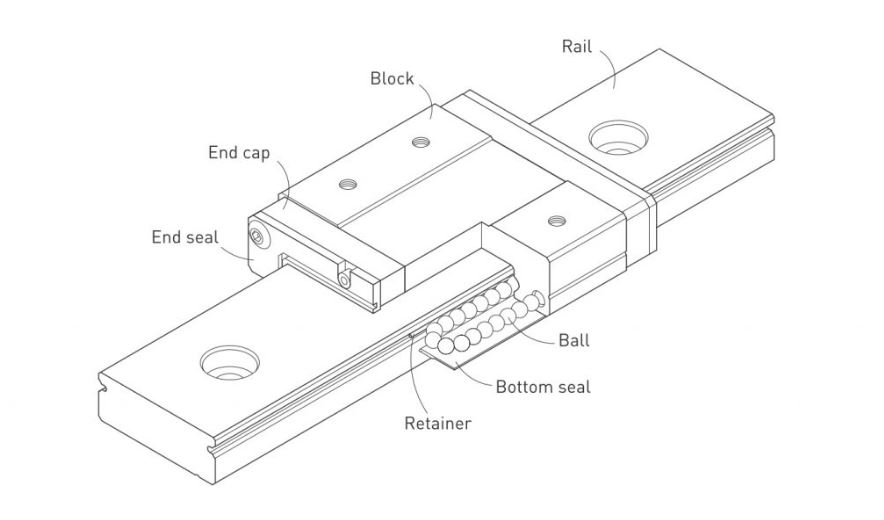

Looking for a reliable and precision-accurate linear bearing for your miniature equipment? Check out our special edition High Quality Black MGN15C Linear Bearing. It's a medium size and light weight rail slide block that's perfect for 3d printing, CNC machining, robotics, measuring equipment, and other machinery. Plus, when used with the MGN15 Rail, it offers high rigidity and precision accuracy.

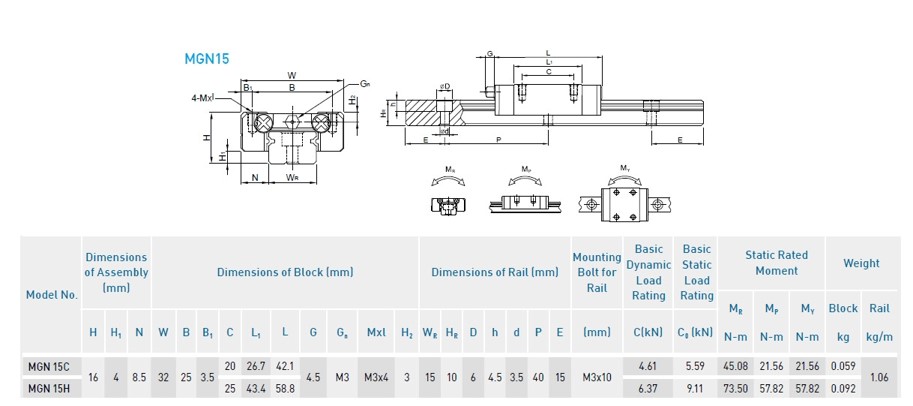

Specifications:

• All metallic components of the Block and Rolling Balls made from Stainless Steel for Anti-Corrosion
• Arch contact design offers high rigidity and precision accuracy
• Steel Balls held captive by a retainer
• Sustains loads from all directions
• Uses a Rolling Circulation System

Additional Information:

• For best results, leave the support rail in the packaging until you're ready to install the block. This will keep the steel balls from escaping the retainer. To install the block onto the rail, use the rail to push the support rail out of the block. This will ensure the steel balls are under tension and have contact with a rail at all times.
• Tightening your rail mounting bolts too much can cause serious problems with the accuracy and function of your block. Be careful not to overdo it!
• Keep in mind that carriage color may differ.
