    PrevC-Beam Motor Mount Plate
    NextIdler Pulley Plate

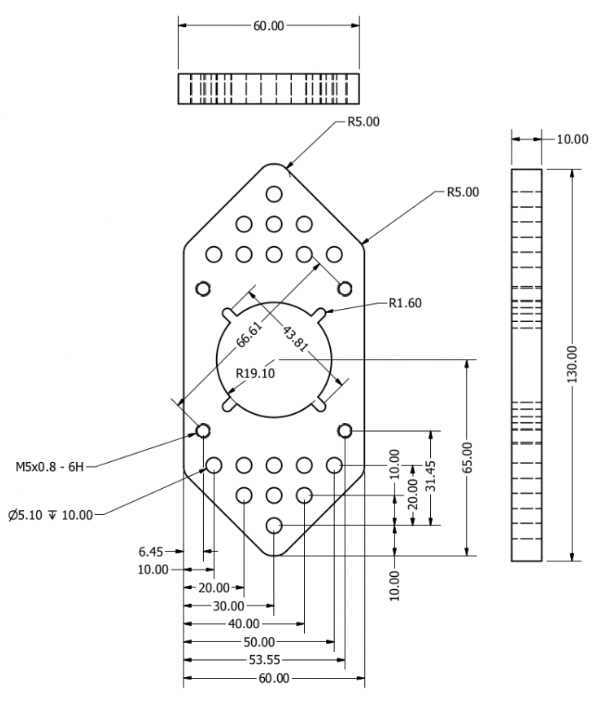

    Gear Rack Motor Mount Plate

    Be the first to review this product
    ₹ 962.88 incl tax
    Looking for a reliable and versatile motor mount plate? Our Gear Rack Motor Mount Plate is compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors. It's a great choice for anyone looking for a durable and robust motor mount plate.
    SKU: MP-RACK
    Availability: Out of stock
    Free shipping

    Description

    Robust, versatile, and modular.

    This Gear Rack Motor Mount Plate is a versatile motor plate compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors.

    Specifications:

    • Material: 6063-T6 Aluminium
    • Finish:  Black Anodized Finish
    • Thickness 10mm.

    Pro Tips:

    • When you need a robust system where the motor shouldn’t be vibrating, use this plate with M5 screws and Sliding T-nuts to attach it to your V-Slot extrusion.
    • To use this plate as a pinion use a Thrust bearing with M5 screws.
    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *

    Description

    Robust, versatile, and modular.

    This Gear Rack Motor Mount Plate is a versatile motor plate compatible with our NEMA 23 standard torque and NEMA 23 High Torque motors.

    Specifications:

    • Material: 6063-T6 Aluminium
    • Finish:  Black Anodized Finish
    • Thickness 10mm.

    Pro Tips:

    • When you need a robust system where the motor shouldn’t be vibrating, use this plate with M5 screws and Sliding T-nuts to attach it to your V-Slot extrusion.
    • To use this plate as a pinion use a Thrust bearing with M5 screws.
